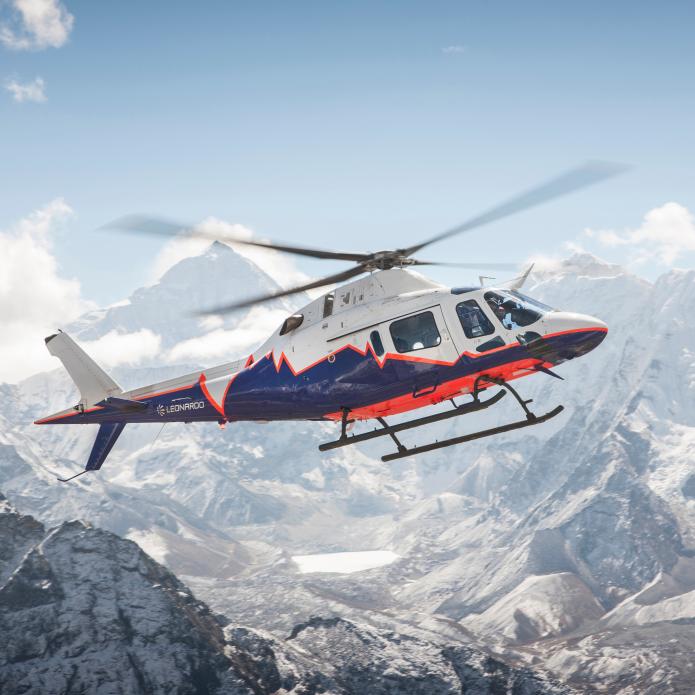

Fast and Flexible
The AW119Kx is the first light single-engine helicopter to meet all IFR standards and offers modern avionics suite and a spacious interior to enable flexibility in role. Operators worldwide benefit from the highest productivity levels among single-engine helicopters, combined with the safety provided by redundancy of main systems, as well as payload and performance at the top of its category.
Missions & Features

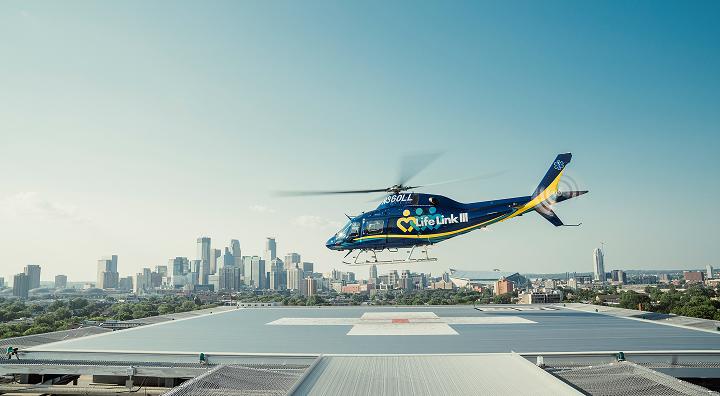

Mission ready
The AW119Kx delivers outstanding controllability and manoeuvrability, even in ‘hot and high’ conditions. Ideally-suited for Emergency Medical Services (EMS)/rescue missions due to its performance and capacity, it retains features typical of a light twin-engine such as redundancy of all critical systems, whilst the high endurance and long range allow operators to respond quickly to incidents.
Outstanding technology and safety
The AW119Kx features the Garmin G1000NXi VFR glass cockpit that enhances situational awareness. The Genesys Aerosystems IFR glass cockpit is available as alternative to Garmin’s avionics suite allowing pilots to operate the aircraft safely in low visibility and challenging weather conditions.

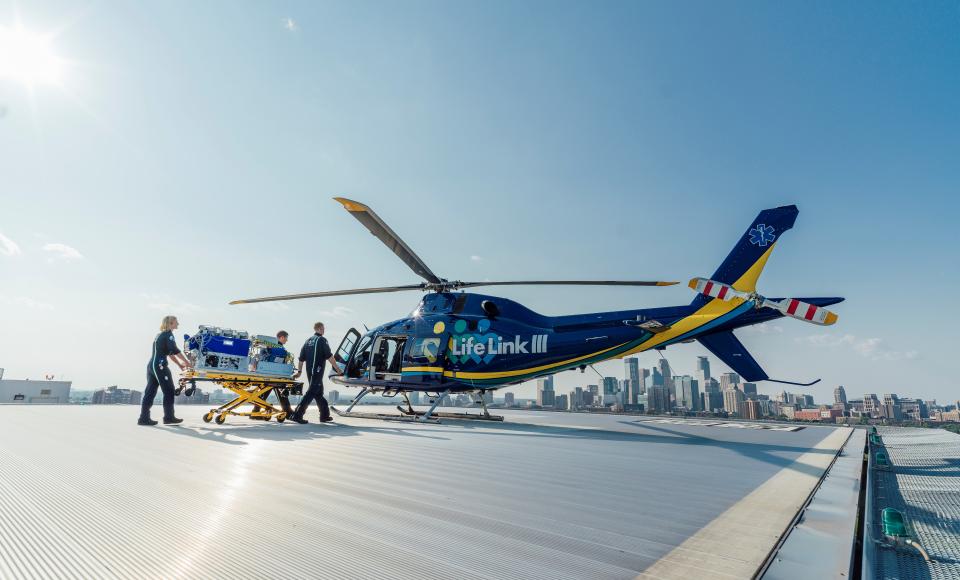

Exceptional cabin flexibility
The spacious and versatile cabin has the capacity for 4 medical attendants and a single stretcher, with entire access to the patient. The modular interior can accommodate a comprehensive range of advanced life-support equipment. The helicopter features wide sliding doors, a large baggage compartment and 204 kg (405 lb) hoist for Search and Rescue (SAR) operations.

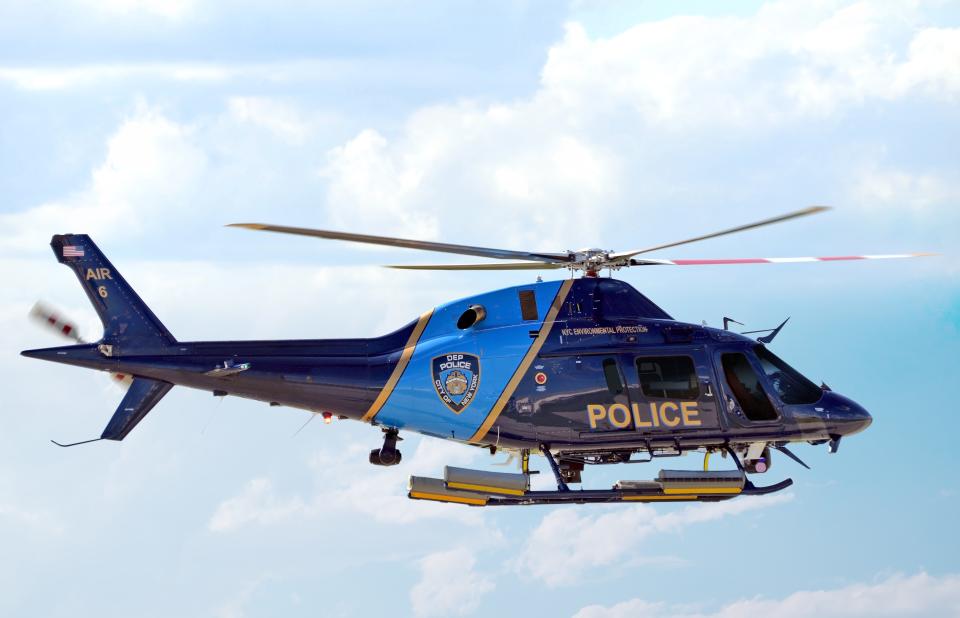

Mission ready
The AW119Kx offers Law Enforcement and Government Agency customers a cost-effective, highly productive platform with inherent mission flexibility. The high cruise speed assures quick operational intervention and the excellent performance characteristics allow the helicopter to safely operate in the most demanding environments.
Outstanding technology and safety
The AW119Kx features the Garmin G1000NXi VFR glass cockpit that enhances situational awareness. The Genesys Aerosystems IFR glass cockpit is available as alternative to Garmin’s avionics suite. The high power margins provide excellent performance characteristics, which allow the AW119Kx to safely operate even in the most demanding environments and confined areas.
Exceptional cabin flexibility
The AW119Kx is the most spacious single-engine helicopter, accommodating up to 6 people (or one stretcher with 4 assistants) and provides a large, comfortable working space for mission operators. The multi-role cabin layout can be reconfigured with combinations of seats, mission consoles, stretchers and medical equipment. Wide doors provide exceptional accessibility and deployment.

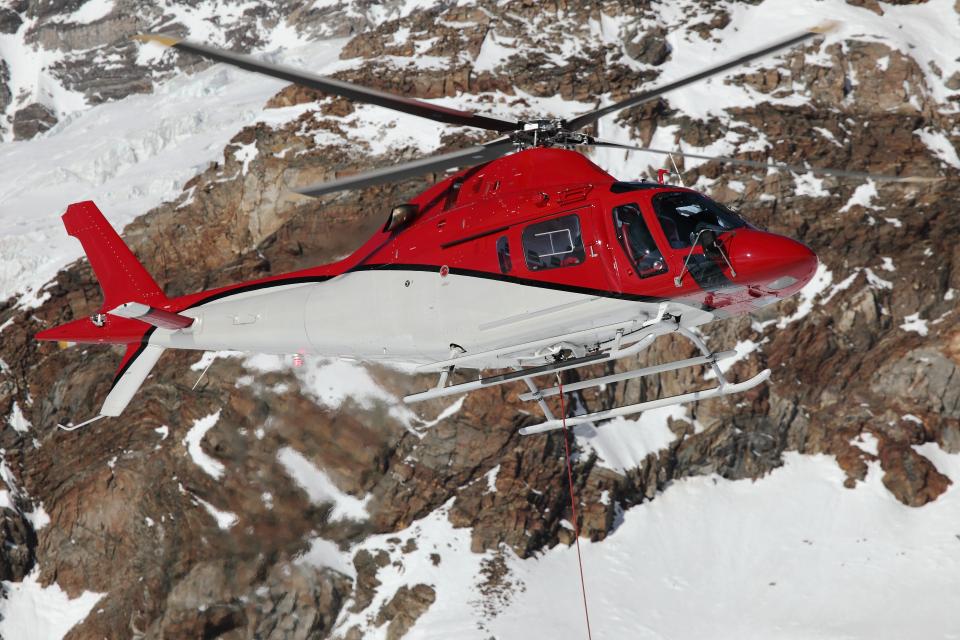

Mission ready
The AW119Kx features a wide and flexible cabin to cater for all situations. High power margins enable safe operations in the most demanding environments typical of utility operations. With a variety of options for role equipment, the helicopter has an extended operating envelope and is characterised by exceptional cargo flexibility.
Outstanding technology and safety
The AW119Kx features the Garmin G1000NXi VFR glass cockpit that enhances situational awareness. The Genesys Aerosystems IFR glass cockpit is available as alternative to Garmin’s avionics suite. Both glass cockpits comprise Synthetic Vision System with Highway in the Sky (HITS) depiction, moving map and Helicopter Terrain Awareness Warning System (HTAWS) with worldwide terrain and obstacle database.
Exceptional cabin flexibility
The largest cabin in its class accommodates up to 7 passengers and can be reconfigured for cargo operations. Equipped with a ‘Bambi bucket’ or belly tank for firefighting missions or with other specialised role equipment, the AW119Kx also offers a high external load capability.
Technical data
Weights (MGW)
Internal loads
2,850 kg - 6,283 lb
Weights (MGW)
External loads
3,150 kg - 6,945 lb
Powerplant
1 x Pratt & Whitney
Canada PT6B-37A
Overall length*
12.92 m - 42 ft 05 in
*Rotor turning
Overall height
3.60 m - 11 ft 09 in
Rotor diameter
10.83 m - 35 ft 06 in
Capacity
Crew 1-2
Passengers Up to 6
Max Cruise Speed (@5,000 FT, ISA, MGW, MCP)
241 km/h (130 kt)
HIGE (ISA, MGW, TOP)
3,353 m - 11,000 ft
HOGE (ISA, MGW, TOP)
2,225 m - 7,300 ft
MAX RANGE (@5,000 FT, ISA, MGW)
945 km 510 nm
with auxiliary fuel tanks -
No reserve
763 KM - 412 NM
with auxiliary fuel tank -
No reserve
Max Endurance (@5,000 ft, ISA, MGW)
5 h 16 min
with auxiliary fuel tanks -
No reserve
4 h 14 min
with auxiliary fuel tank -
No reserve
