Single [R]evolution
The versatile light single-engine helicopter
Mission versatility is essential for modern helicopter operations. The AW09 is a next-generation, high capability, single-engine helicopter offering the built-in versatility to tackle multiple missions. Capable of carrying up to eight passengers, the AW09 delivers next-generation technology and safety allowing operators to go further and do more.
Multi-mission solution
The AW09 is optimised for numerous roles, including passenger transport, utility, Emergency Medical Services (EMS) and security missions. Its combination of capabilities such as speed, range and endurance, as well as low noise profile makes it a flexible and efficient solution for today’s rotary wing market.
Versatile cabin
The spacious, versatile and quiet cabin features a flat floor and high ceiling to maximise the available space, as well as individual crashworthy seats. The interior can be reconfigured quickly and easily for multi-mission operations and there are sliding and clamshell doors for easy access.
Discover more about the VIP/Executive Transport
Missions & Features
Mission ready
The AW09 sets a new benchmark in the light single-engine helicopter market for passenger transport missions combining comfort, flexibility and a cabin that offers the most generous legroom in its category. Quick conversion among multiple seat layouts with up to 8 passengers is made possible, according to mission needs, thanks to the flat floor, independent crashworthy seats and largest cabin volume in its category.
Next-generation technology
The AW09 features a state-of-the-art glass cockpit with Garmin G3000H integrated flight deck for enhanced situational awareness and safety and with built-un connected features. The five-blade fully composite rotor system brings superior manoeuvrability and a smooth flight. The helicopter is powered by a Safran Arriel 2K engine, featuring next-generation technology, reduced fuel consumption and modern dual channel FADEC with auxiliary backup system.
Superior flying experience
The low vibration levels combined with powerful air conditioning and heating system guarantee a comfortable and quiet flight. The AW09’s window design offers a stunning view outside the helicopter, adding to a superior flying experience thanks to several high visibility options.

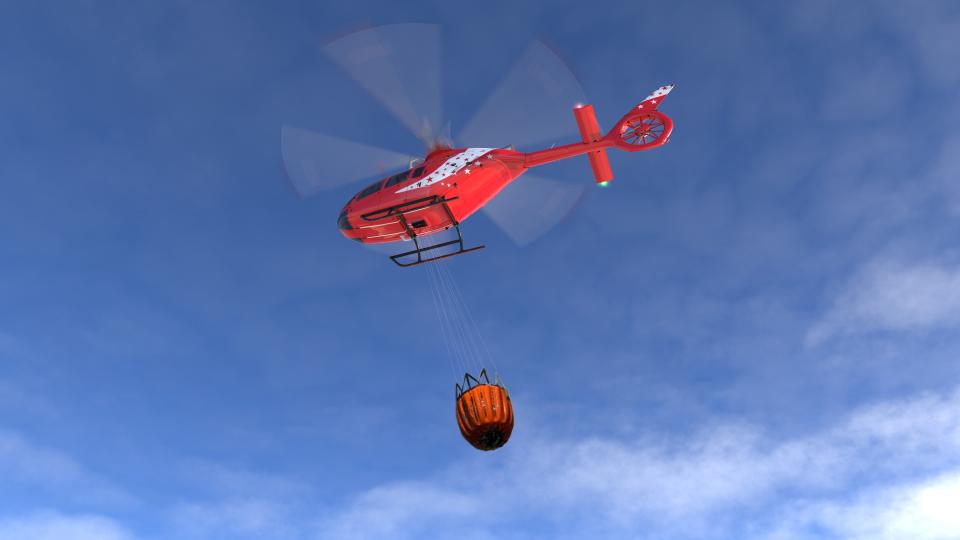

Mission ready
Utility operations demand both performance and flexibility. The AW09 is optimised for a range of missions from firefighting to aerial lift. The helicopter offers excellent sling-load capability and an unrivalled internal cargo possibility thanks to the largest cabin volume in its class.
Next-generation technology
The AW09 features a state-of-the-art glass cockpit with Garmin G3000H integrated flight deck for enhanced situational awareness and safety and with built-un connected features. The five-blade fully composite rotor system brings superior manoeuvrability and a smooth flight. The helicopter is powered by a Safran Arriel 2K dual FADEC engine.
Flexible capability
The AW09’s flat floor and unobstructed access, combined with the widest cabin on the market bring the flexibility needed for utility missions. The helicopter has an external load take off weight exceeding 3,000 kg (6,614 lb), while the multi-attachment prepared floor enables several internal cargo possibilities.

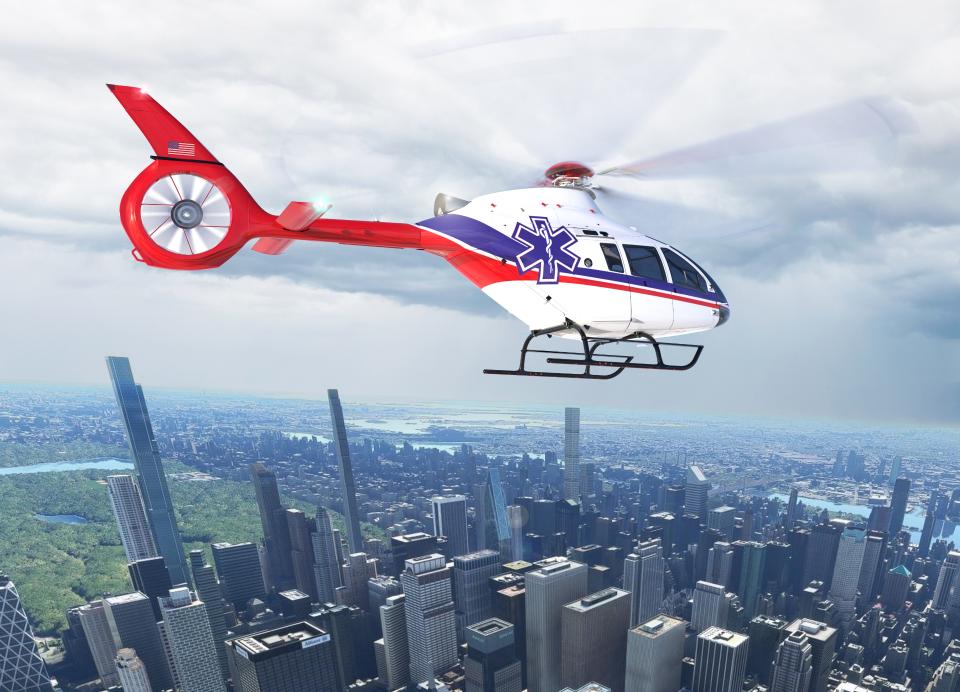

Mission ready
When lives are on the line, the AW09 provides operators with a versatile and reliable asset that is ready to tackle a range of primary and secondary Emergency Medical Services (EMS) missions. The helicopter’s compact footprint enables operations from unprepared surfaces and tight landing zones.
Next-generation technology
The AW09 features a state-of-the-art glass cockpit with Garmin G3000H integrated flight deck for enhanced situational awareness and safety and with built-un connected features. The five-blade fully composite rotor system brings superior manoeuvrability and a smooth flight. The helicopter is powered by a Safran Arriel 2K dual FADEC engine.
Flexible cabin space
The flexible cabin can accommodate up to three medical crew members and one stretcher in addition to the pilot. The cabin is designed for optimal access to the patient, while the multi-attachment prepared floor and high ceiling enable the installation of a range of medical equipment.

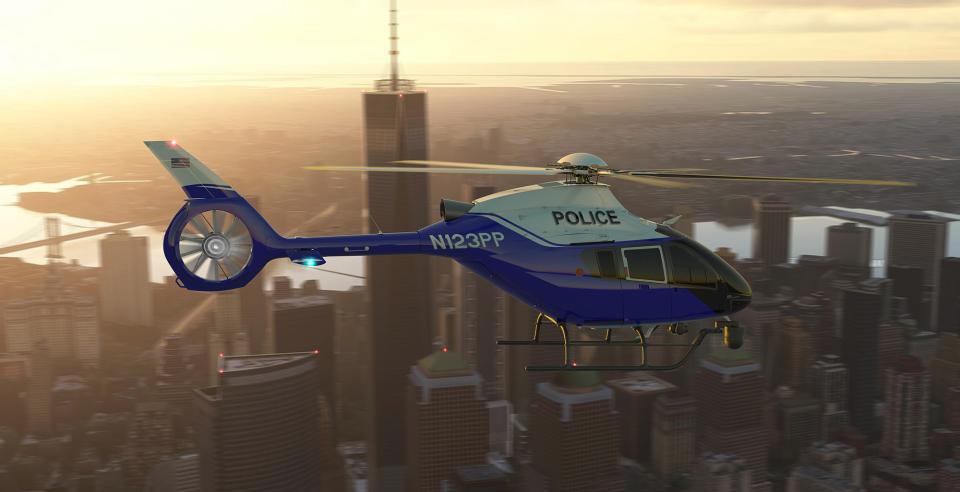

Mission ready
Security missions demand a rapid response capability. The AW09’s high speed, endurance of up to five hours and advanced on-board technology combine to ensure mission effectiveness when it is needed most. The helicopter’s low noise and vibration levels provide the optimum working environment.
Next-generation technology
The AW09 features a state-of-the-art glass cockpit with Garmin G3000H integrated flight deck for enhanced situational awareness and safety and with built-un connected features. The five-blade fully composite rotor system brings superior manoeuvrability and a smooth flight. The helicopter is powered by a Safran Arriel 2K dual FADEC engine.
Robust and versatile
The AW09 gives security operators the ability to take off and land on unprepared surfaces thanks to the robust landing skids and shrouded tail rotor. The helicopter features the widest cabin on the market with a range of options for seating layout and equipment installation.
Technical data
Capacity
1 Pilot + up to 8 Passengers
Maximum Speed
260 km/h / 140 kts
Maximum range and endurance
800 km / 430 nm
5 hrs
Maximum take-off power (thermodynamic power equivalence)
1006 shp / 750 kW
Maximum take-off weight with internal load
2,850 kg / 6,284 lbs
Maximum take-off weight with external load
>3,000 kg / 6,614 lbs
Sling-load capacity
1,500 kg / 3,300 lbs
Powerplant
Safran Arriel 2K dual FADEC turbine engine
